As we have continuously pushed the boundaries on the Air Driven Picket Post Driver, we have also developed some of the best solutions in the world for pulling your posts out of the ground with our range of Universal Pullers.
|

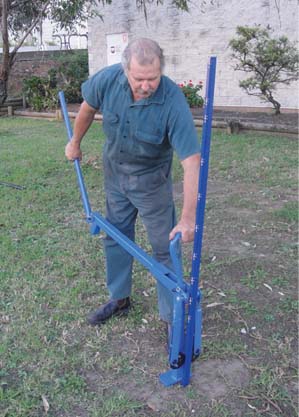

Universal Puller - Nip Roller Jaws
- Specifically developed to pull posts out straight for reuse
- Pulls out any post with an edge for example all kinds of "Y", "T", roadside reflector, vineyard and trellising posts
- Most post are extracted with 1-2 tonnes which can be applied with the weight of one person
- You can apply up to 3 tonnes of pull to a post with two people
- The nip roller jaws are designed to grab the post - the harder you pull, the harder they grab
- The nip rollers can be index to use in 8 different positions extending the life of the tool dramatically
- The nip rollers and pins are all made out of high tensile steel and heat treated
- The nip roller jaws can grab from 1mm through to 8mm thick steel in the standard arrangement
- Specialised backing plates are available to extend the grab of the nip rollers to 30mm through to 50mm thick steel
|
Universal Puller - Interchangeable Jaws
- The versitilty continues with this Universal Puller as the nip rollers jaws can be interchanged specifically with jaws for "Y" post or pipe up to 4" diameter
|

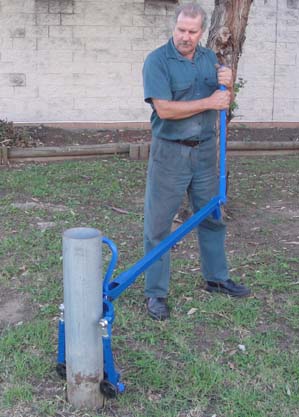

Universal Pipe Puller
- Can be adjusted to remove 2" to 6" Gal round or square steel pipe and timber posts
- It has dual grip rollers to allow for a larger surface area on timber posts
- The pivoting arm and cheater arm are both reinforced for additional weight to be applied
- The nip rollers are adjusted along a toothed backing plate marked with sizes from 2" to 6"
|
Tractor Pull
- This device can be used in conjunction with your Bobcat, tractor or backhoe to remove posts while pulling them out straight
- Totally dedicated to "Y" post
- The blade can be used to accommodate Chinese or local manufacture post
- Short length of chain is used to attach the Tractor Pull to your bobcat, tractor or backhoe
- Any implement that can apply at least 2 tonnes of vertical lift can be used in conjunction with this product
|
Post Grab
- Utilising the nip roller arrangement that was developed for the Universal Puller we have adapted this for the Post Grab for grabbing any edge of a post
- This was particularly developed for grabbing American "T" posts because their unusual shape made it difficult to quickly grab by any other method
- The ability to grab the post in one second and release in one second has made this a runaway success at the World Ag Expo this year
- It can also grab the edge of a road side marker or any post with an edge especially top hat sectioned posts
|
